| Tên thương hiệu: | WONDERY |
| Số mô hình: | WDL-RGQZ-500 |
| MOQ: | 1 bộ |
| giá bán: | TO BE NEGOTIATED |
| Thời gian giao hàng: | 35 ngày làm việc |
| Điều khoản thanh toán: | L/C, D/P, T/T, Western Union |

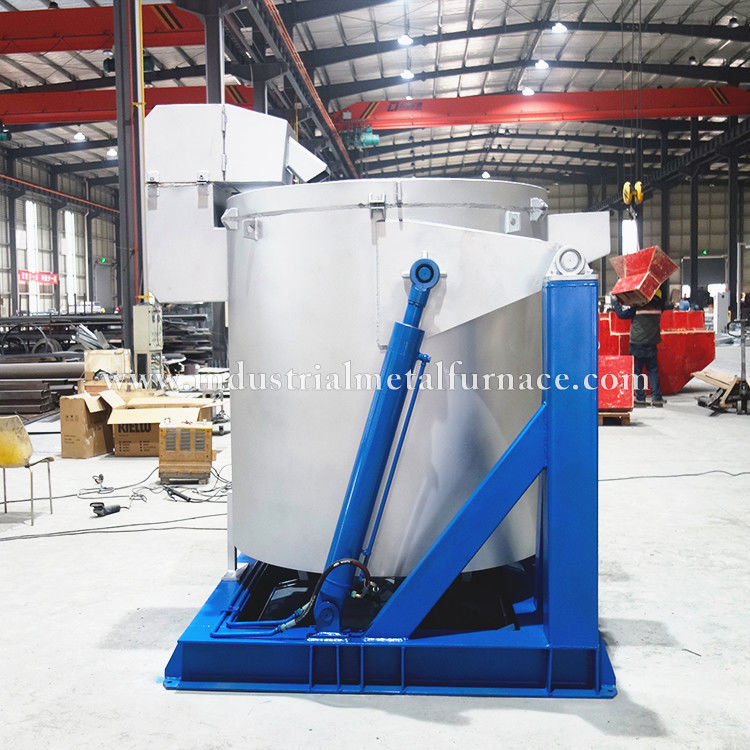

WDL-RGQZ-500 Natural Gas Tilting Zinc Melting Furnace | 500kg High-Efficiency Zinc Melting Equipment | Hydraulic Tilting Design
WUXI WONDERY INDUSTRY EQUIPMENT CO., LTD. proudly presents the WDL-RGQZ-500 Gas Fired Tilting Zinc Melting Furnace, a high-performance industrial melting solution designed for efficient and reliable processing of zinc and other low-melting-point metals. This tilting zinc melting furnace is engineered to deliver consistent performance in foundries, die-casting facilities, and metal recycling operations, offering enhanced productivity and energy efficiency in a robust and user-friendly design.
The WDL-RGQZ-500 features a 500kg crucible capacity and a melting rate of approximately 250kg per hour under continuous operation. Utilizing natural gas as fuel, it consumes between 45–50 m³ per ton of zinc, ensuring cost-effective and environmentally responsible operation. With a rated working temperature of 650°C and outer wall temperature maintained below room temperature +50°C, this furnace provides safe, stable, and precise thermal control for superior melting quality.
Equipped with an advanced Riello gas burner, the furnace supports automatic ignition, flame monitoring, and intelligent temperature regulation. The hydraulic tilting system ensures smooth and controlled pouring of molten metal, while the durable refractory lining—constructed with high-strength castable and insulated with Grade One silicate aluminum fiber—guarantees extended service life and excellent thermal retention. Additional safety features include an emergency outlet and leak alarm for secure operation.
Key Technical Parameters:
| Parameter | Specification |
|---|---|
| Model | WDL-RGQZ-500 |
| Crucible Capacity | 500kg |
| Melting Rate | ~250 kg/hour |
| Fuel Type | Natural Gas |
| Fuel Consumption | 45–50 m³/ton zinc |
| Working Temperature | 650°C |
| Outer Wall Temperature | ≤ Ambient +50°C |
| Tilting System | Hydraulic |
| Burner Brand | Riello |
Why Choose WUXI WONDERY INDUSTRY EQUIPMENT CO., LTD.?
Our zinc melting furnace comes complete with furnace body, electrical control box, Riello burner, Golden Elephant brand crucible, thermal couples, automatic temperature controller, and hydraulic station. Each unit is backed by a 13-month warranty and comprehensive after-sales support. Whether you are melting zinc, aluminum, lead, or other low-melting-point alloys, the WDL-RGQZ-500 industrial tilting furnace offers reliability, safety, and high productivity tailored to modern metal processing needs.
