| Tên thương hiệu: | WONDERY |
| Số mô hình: | 4x1,2x3,6m 110 tấn |
| MOQ: | 1 bộ |
| giá bán: | TO BE NEGOTIATED |
| Thời gian giao hàng: | 3-5 ngày làm việc |
| Điều khoản thanh toán: | L/C, D/P, T/T, Western Union |
Eco-Friendly Galvanizing System with Patented Waste Heat Recovery | 50% Energy Reduction Technology
WUXI WONDERY INDUSTRY EQUIPMENT CO., LTD.'s 4x1.2x3.6m galvanizing line represents a breakthrough in sustainable industrial processing, featuring seven integrated energy recovery systems that reduce natural gas consumption by up to 20%. Our patented waste heat utilization technology transforms thermal losses into productive energy, beginning with 500°C exhaust gases preheating assist agents to 50-70°C. This initial recovery alone saves approximately 30% of traditional heating energy requirements.
The system's environmental innovations extend to comprehensive fume management. Our enclosed acid room design reduces ventilation requirements by 50-100% while containing acid mist within the processing area. The dual-stage zinc fume collection system—combining mobile overhead hoods and side extraction—captures over 95% of emissions with 50% lower fan power consumption. Advanced frequency control allows fans to operate at 10Hz during idle periods, increasing to 50Hz only during active processing, achieving 100-200% energy savings compared to conventional systems.

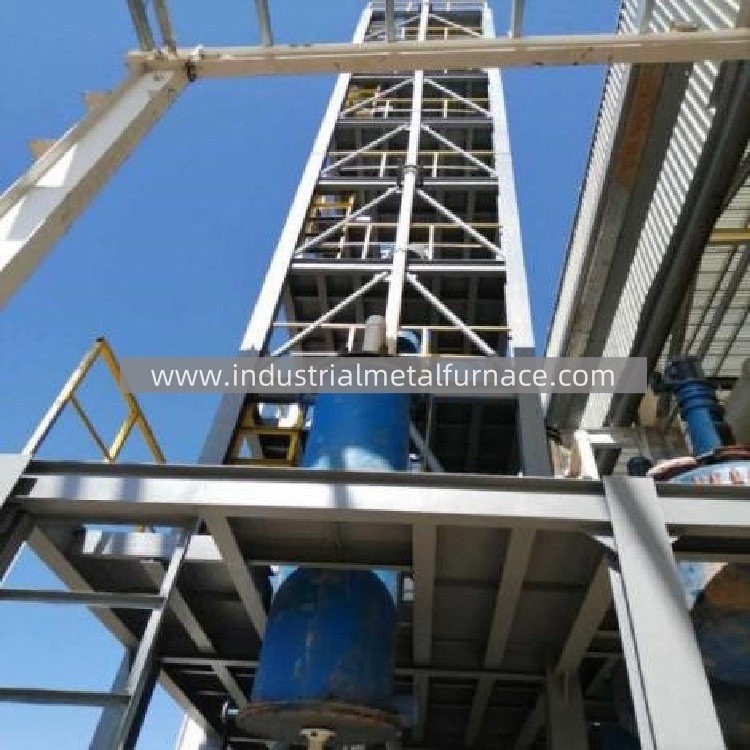

Water conservation and acid management receive equal attention. The closed-loop cooling system exchanges heat between acid baths and cooling water, eliminating the need for external cooling towers. Acid mist undergoes two-stage treatment in dilution and neutralization towers, with treated water recycled for new acid preparation. This comprehensive approach reduces chemical consumption by 30% while ensuring emissions consistently meet international environmental standards.
| Energy Recovery System | Performance Metrics |
|---|---|
| Assist Agent Preheating | 500°C → 90°C hot water, 50-70°C final temperature |
| Combustion Air Preheat | 200°C exhaust → 50-150°C hot air, saves 2-3m³ gas/ton |
| Sludge Drying System | Reduces moisture from 80% to 10%, cuts disposal weight by 80% |
| Zinc Pot Side Heat Exchanger | 200°C surface heat recovery for heating applications |
| Drying Oven Heating | 300°C exhaust reuse, improves drying efficiency by 40% |
| Acid Bath Heating | Saves winter steam heating requirements |
| Workshop Heating | Direct heat distribution from exhaust gases |
| Total Energy Saving | 15-20% reduction in natural gas consumption |
