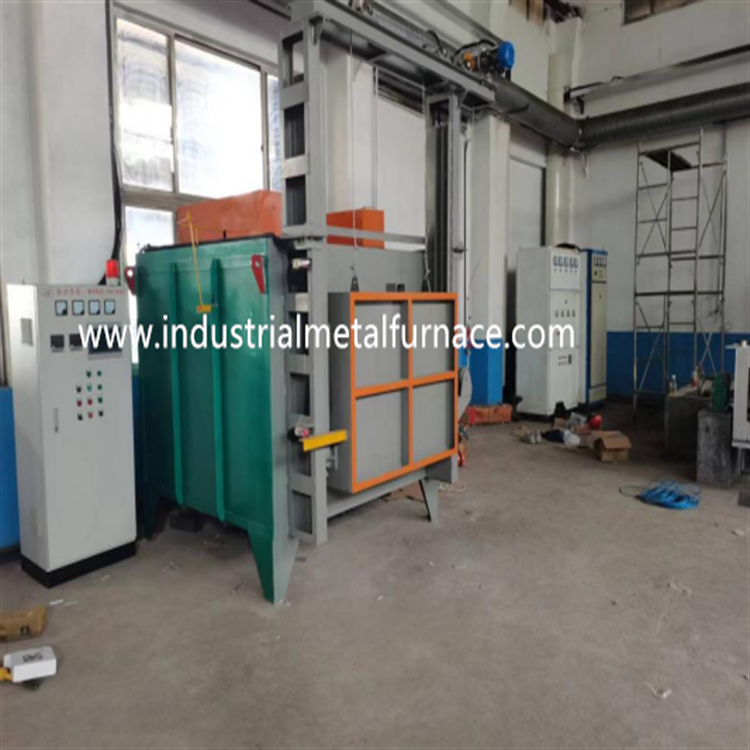

1.3x1.3x1.5m Aluminum Alloy Aging Furnace Heat Treatment Furnace
WUXI WONDERY INDUSTRY EQUIPMENT CO., LTD. offers a specialized Aluminum Alloy Aging Furnace, designed as a cyclic operation resistance furnace primarily for the aging treatment of aluminum alloy castings post-quenching and other workpieces at temperatures up to 300°C in an air atmosphere. This industrial furnace ensures excellent thermal circulation, uniform temperature distribution, and precise control for consistent heat treatment results.
The furnace features a robust construction with a steel frame, cold-rolled steel panels, and insulation using aluminum silicate refractory fiber. Its core temperature control system utilizes a PID zero-crossing triggered thyristor paired with a Japanese Shimaden intelligent meter and a 10.1-inch touch screen for precise regulation. Dual safety is ensured through a paperless recorder for temperature logging and an over-temperature alarm, effectively preventing workpiece overheating. Below are the key technical parameters defining its performance:
| Parameter | Specification |
|---|---|
| Rated Power | 35KW (±5%) |
| Rated Temperature | 300°C (Commonly used at 185°C) |
| Furnace Temperature Uniformity | ±5°C |
| Temperature Control Accuracy | ±1°C |
| Effective Workspace (Basket Size) | 1300mm (L) x 1300mm (W) x 1500mm (H) |
| Maximum Loading Capacity | ≤ 1 Ton |
| Number of Heating Zones | 1 Zone |
| Circulation Fans | 2 Sets (1.5KW each) |
Forced air circulation is key to achieving thermal uniformity, facilitated by two 1.5KW centrifugal fans made of 1Cr18Ni9Ti heat-resistant steel and a sophisticated air guide system. This setup efficiently circulates heat from the 0Cr25AL5 alloy heating tubes into the workspace, ensuring even heating of the load. The furnace integrates interlocking safety controls that automatically cut power to the heating elements and fans when the door is opened, preventing operator errors and ensuring workplace safety.
WUXI WONDERY INDUSTRY EQUIPMENT CO., LTD. provides a complete package including the heating furnace, touch screen control system, electric trolley, and thermocouple set. The offered solution represents a reliable and efficient choice for aluminum heat treatment processes requiring precise temperature management and operational safety.
