| Tên thương hiệu: | WONDERY |
| Số mô hình: | 7000x4000x3000mm |
| MOQ: | 1 bộ |
| giá bán: | TO BE NEGOTIATED |
| Thời gian giao hàng: | 60 ngày làm việc |
| Điều khoản thanh toán: | L/C, D/P, T/T, Western Union |

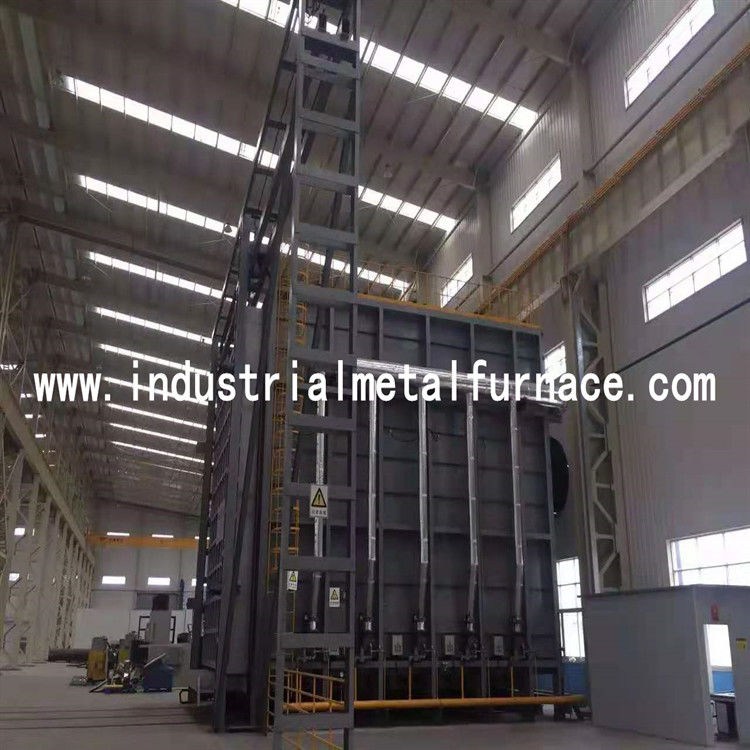

WUXI WONDERY INDUSTRY EQUIPMENT CO., LTD proudly presents its high-performance Gas Fired Bogie Hearth Furnace, engineered for precision heat treatment of steel parts, pressure pipes, and castings. This robust furnace model RTQ-630-11 is designed for demanding industrial applications requiring processes such as annealing, normalizing, and tempering. Featuring an effective workspace of 7000×4000×3000mm and a substantial 25-ton loading capacity, it ensures high-volume productivity and uniform heating crucial for superior metallurgical results.
The furnace's core strength lies in its advanced pulse combustion system, which utilizes high-speed burners for optimal temperature uniformity (±10℃) and fuel efficiency. With a maximum operating temperature of 1100℃, the system provides fully automated control through a Siemens PLC and a 10-inch touchscreen HMI, enabling programmable heating curves, real-time monitoring, and safe, interlocked operation. The all-fiber refractory lining significantly enhances thermal insulation, reduces heat loss, and shortens cycle times compared to traditional brick-lined furnaces.
Built with reliability and safety as priorities, the furnace incorporates multiple layers of protection, including automatic flameout detection, gas pressure safety shut-off valves, and comprehensive alarm systems. Its energy-saving design, featuring air preheating and precise air-fuel ratio control, ensures low emissions and operational cost-effectiveness. WUXI WONDERY's solution is ideal for manufacturers seeking a durable, high-capacity, and technologically advanced heat treatment furnace to improve product quality and production efficiency.
Key Technical Parameters at a Glance:
| Parameter | Specification |
|---|---|
| Model | RTQ-630-11 |
| Effective Size (L×W×H) | 7000×4000×3000 mm |
| Rated Temperature | 1100℃ |
| Loading Capacity | 25 Tons |
| Temperature Uniformity | ≤ ±10℃ (holding stage) |
| Heating Method | Natural Gas, Pulse Combustion |
| Control System | Siemens PLC + Touchscreen HMI |
| Furnace Lining | Energy-Saving All-Fiber Structure |
| Primary Application | Annealing, Normalizing, Tempering |
